Jeep TJ - Repair Tips

This is a collection of tips I've learned over many years of disasembling, repairing, and building TJ's.

Jeep TJ Buying Tips

The biggest worry with TJ's today is frame rust. Unfortunately there are a couple places on the frame where they consistently rust out. The most worrisome is where the upper control arm for the rear axle meets the frame. Currently we do not have a kit for this but we are in the process of developing one. The next common area is where the transfer case skid mounts to the frame.

There are other places where I have seen rust but not as consistent as the above. Recently I did have a TJ where I had removed the driverside seat belt and found that the roll bar had a hole rusted in it at the base undeneath the seat belt retractor. This is a bit worrisome as it was completely hidden by the seat belt retractor.

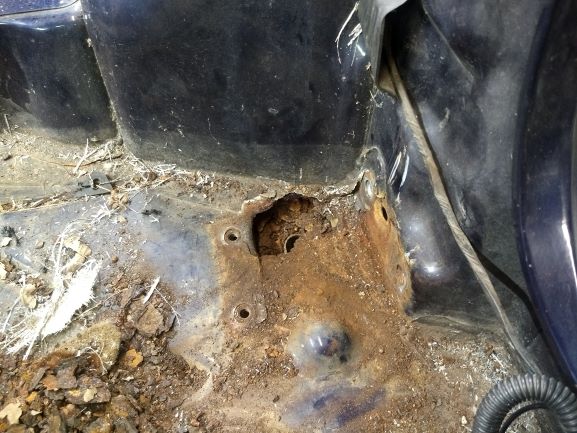

Obviously tub rust is also one of the things to look for as well. Rust can start to appear on the side of the tub where the floor meets the side. Another area that is very common is the top of the front fenders. This is because in stock form this was a double panel area with foam in between which tends to hold water.

The 2.5L inline 4 cylinder engines are typically avoided as they lack power and tend to have shorter life spans than the 6 cylinder engine.

The 4.0L 6 cylinder engines are pretty bullet proof. As long as you have good oil presure most other issues are fairly simple to fix. They are also the same engines used in cherokees which can be easily found for decent prices.

Swapping a 97-98 to Engine/Transmission and Newer HVAC

In 99 the TJ's underwent several changes, most of which were hidden from view. Recently we were building a 97 Jeep TJ that had the powertrain stripped out of it. We found a 2000 engine, transmission, ECU and wiring to swap into the Jeep. We did not have the engine wiring of the original 97 or the original computer. As we swapped in the engine and wiring harnes we found that to get everything to work without hacking up the wiring we had to switch all of the wiring from the engine, engine side of the fire wall, dash side of the firewall and the dash itself. The first three had to be done just to get the Jeep running as the dash side of the firewall harness contains the fuses for the ignition and other systems. The dash harness could have been modified to make work, but we didnt want to have to cut a lot on the harnesses and then later on have reliability issues.

Because we decided to switch the dash harness this pushed us towards swapping out the enter HVAC box and controls. The reason for this is that in the 99 change Jeep also changed from slider controls to knob style controls. This mainly changed how the blend door was actuated. Before 99 the blend door was controlled by a cable and slider, the 99 change made this an electronic device to adjust the blend door. Luckily we had most of the parts for this swap from the donor Jeep which made it easy.

HVAC - Blend Door Alignment

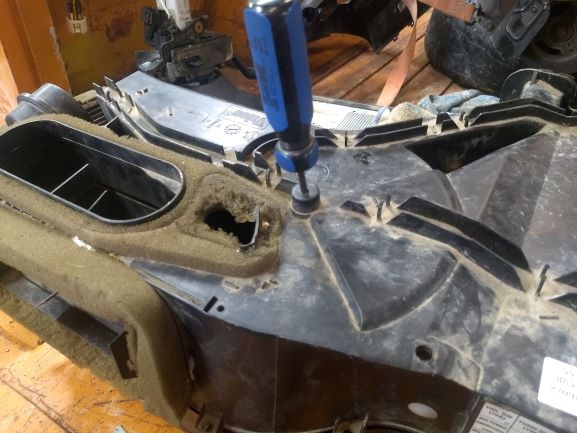

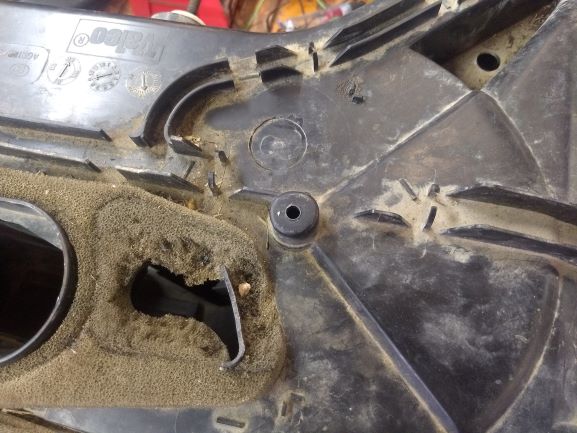

When replacing the heater core or evaporator the blend door can be a pain to get lined up. To make this easier I drill a small hole in the top of the HVAC system, then use a phillips screw driver to manipulate and align the blend door during assembly. Once the system is reassembled you can plug the hole with a screw, rivet or even just cover it with tape. The hole is hidden behind the dash once the system is reinstalled.

TJ Roll Bar Rust Behind Seat Belt Retractor

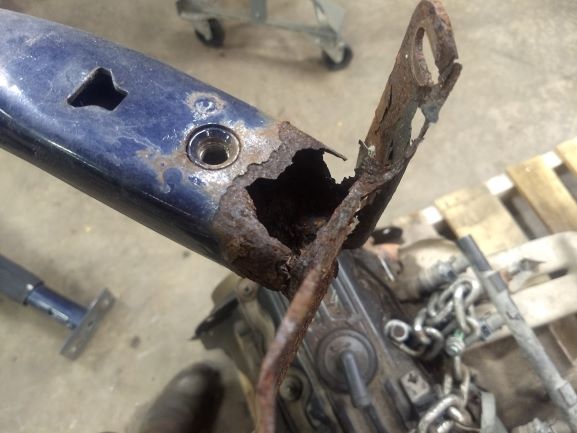

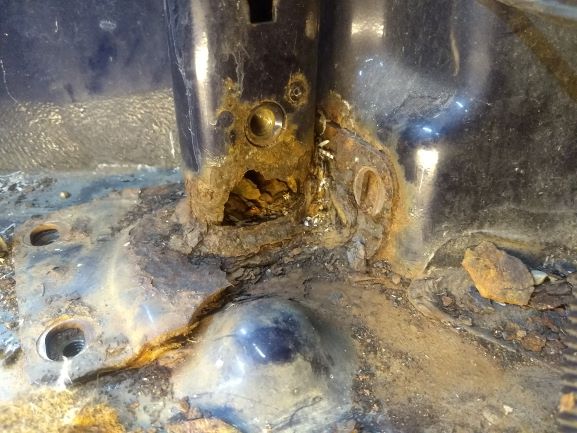

We have found in some TJs that the roll bar can start to rust out at the bottom of the mount behind the front seats. This can happen on either the driver or passenger side. Below are some pictures of what that looks like. The dangerous thing about it is that the seat belt retactor can hide this rust so it is difficult to see.

TJ Serpantine Belt Adjuster Breakage

The serpentine belt adjuster as time goes on can be prone to breakage of the main bolt used for adjustment. To avoid this we recommend soaking the piece that the pulley threads into with a penetrating fluid. Then when you go to adjust it leave the pulley tightened but loosen the adjuster bolt. If you loosen the pulley first it allows the piece the pulley threads into to move when trying to loosen the adjuster this could help lead to the breakage. If you do break the adjuster bolt there is not much you can do but remove the bracket.

Exhaust Manifold Cracking

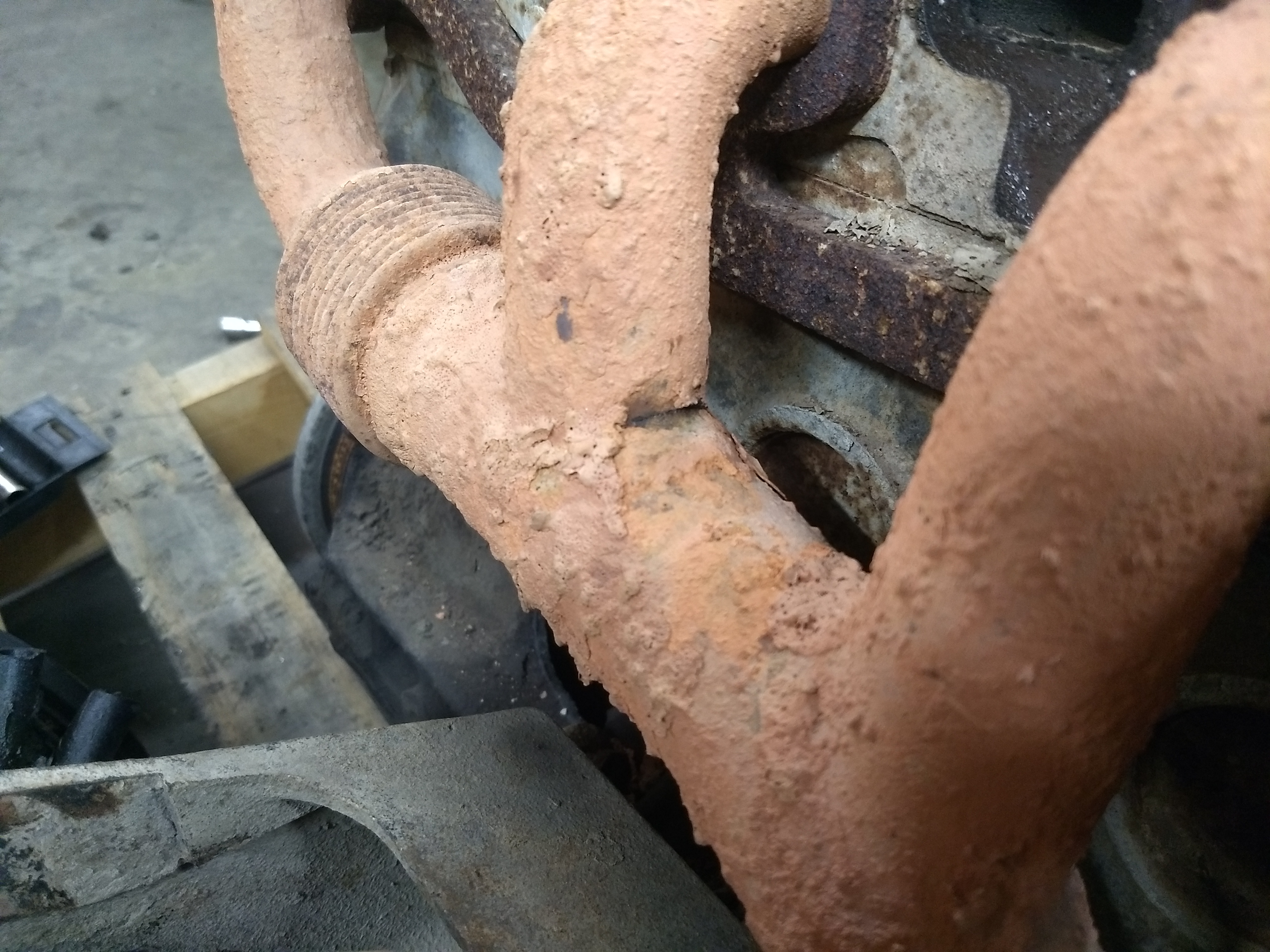

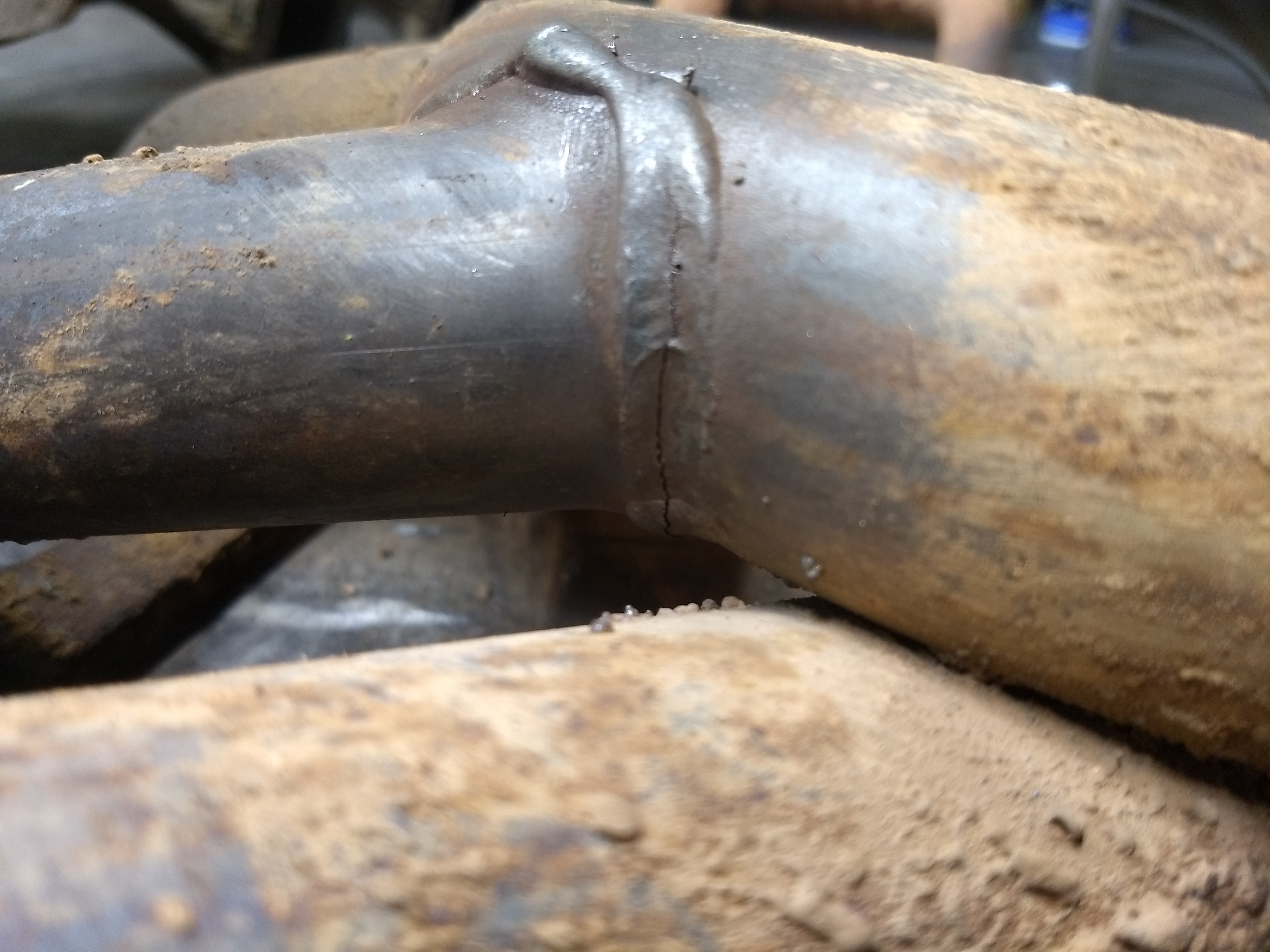

The 4.0 exhaust manifolds are very prone to cracking over the years. Bad cracks can typically be easily heard, and often seen as in the case in the first picture. The manifold here is covered in dried mud, however the crack shows up as the black line due to the exhaust escaping. Other cracks are more difficult to see. Minor cracks can be repaired by rewelding, however the manifold will continue to be very prone to cracking.

Fuel Injector O Rings

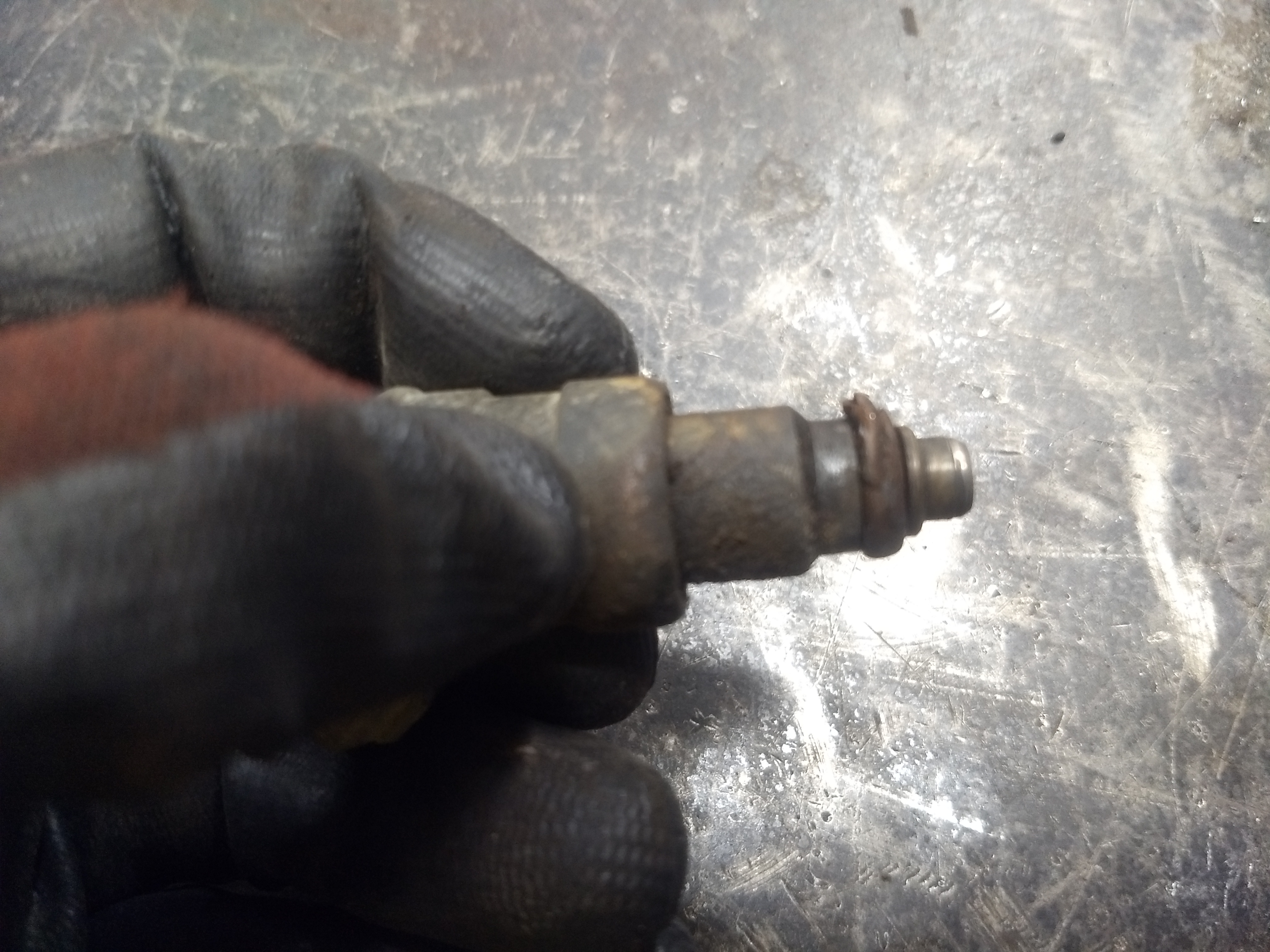

The injector o rings if not careful when assembled can be damaged.

Jeep TJ Frame & Tub Rust Issues

Extreme Frame Rust

Frame Rear Control Arm Rust Repair

Jeep TJ Gas Tank Removal

Jeep TJ Ball Joint Removal and Installation

Jeep TJ Wheel Hub Replacement

Jeep TJ Frame & Tub Rust Issues

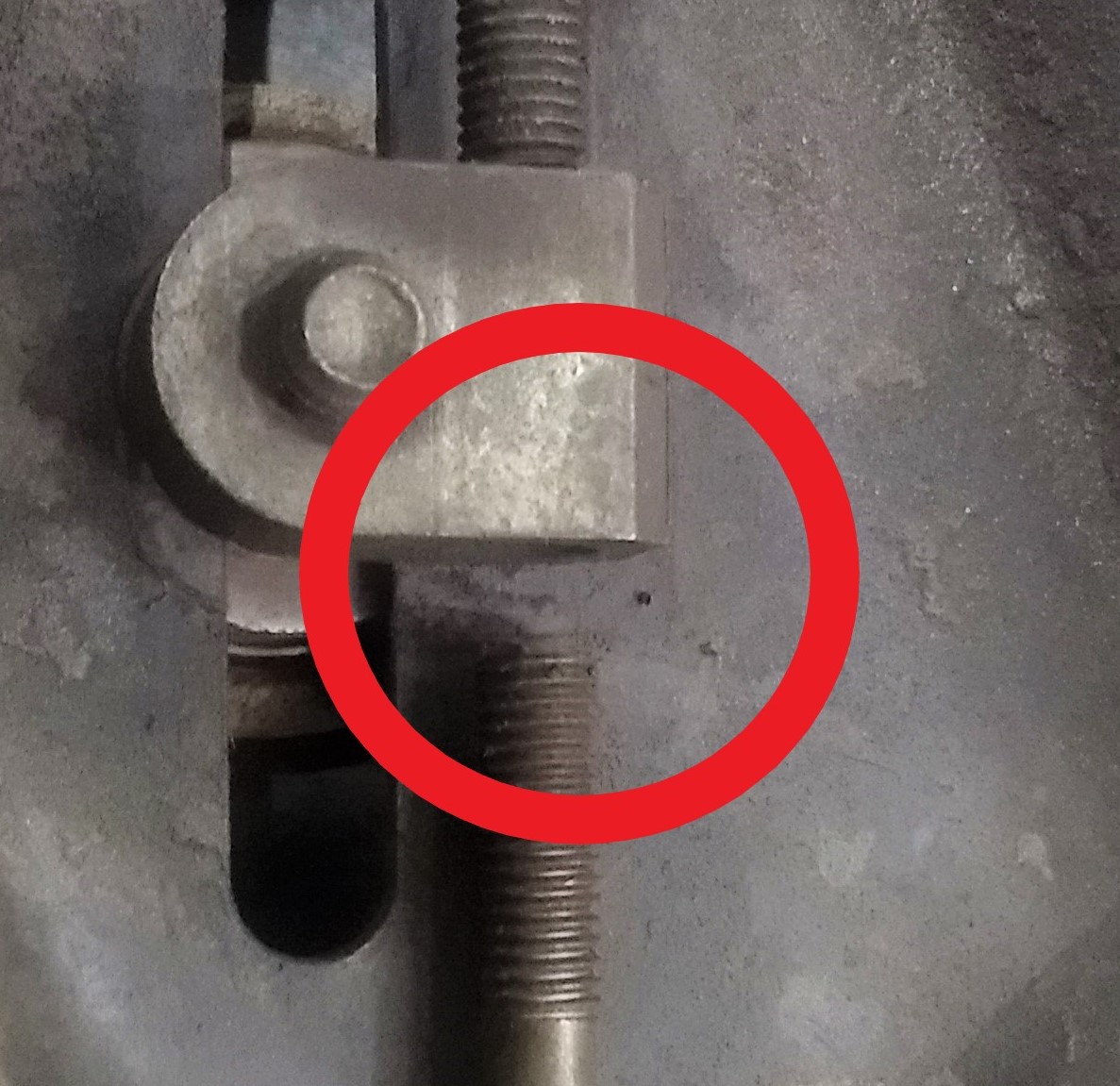

Another issue that can occur on TJs that are used for moderate wheeling or more is damage to the Upper Control Arm mount on the front axle. Here is something that can prevent that.
