Hub and Spindle Kit-Side Mount-Double Shear

Heavy-Duty Tire Carrier Pivot Kit – Double Shear Design for Off-Road Durability

This Tire Carrier Pivot Kit is engineered for off-road and heavy-duty applications, offering a strong and smooth pivot mechanism. Designed to be mounted on top of bumpers or other structures, this kit provides all the necessary components to create a reliable, long-lasting pivot for your tire carrier.

Key Features:

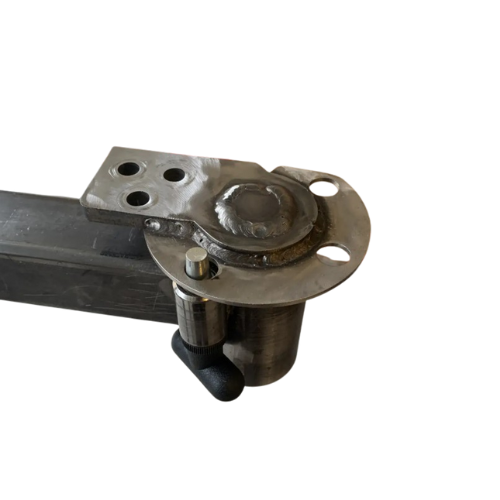

- Double Shear Design – The spindle is supported independently on both the top and bottom, providing twice the shear strength compared to a single shear kit. This makes it ideal for heavy-duty and off-road use.
- Smooth Operation – The kit features two tapered roller bearings, ensuring smooth rotation even under heavy load. Additionally, the hub includes a grease zerk and hole for easy lubrication, ensuring long-term performance.
- Heavy-Duty Construction –
  - 3/8-inch thick steel plate for the main structural components
  - 1/4-inch thick steel side plates for additional strength
  - Solid 1.25-inch OD steel spindles, machined for ultimate durability

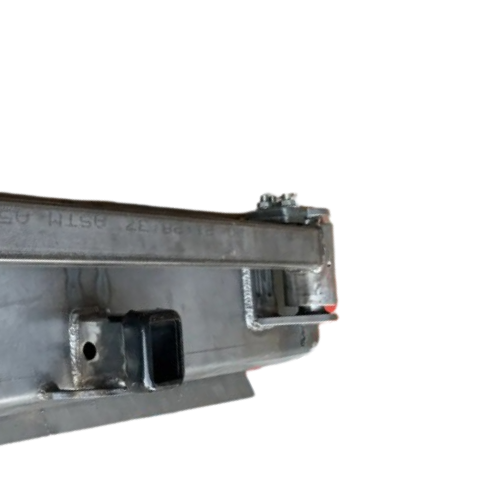

- Installation Note – Requires 1 inch of clearance underneath the hinge assembly for gusseting to ensure a secure and sturdy installation.
- Dimensions – The overall size of the pivot assembly is:
  - 5.25 inches tall
  - 5.5 inches long
  - 3.25 inches out from the mounting surface
- American Made – Proudly manufactured by a veteran-owned business, ensuring exceptional quality and craftsmanship.
This Tire Carrier Pivot Kit is the perfect solution for anyone looking to build a reliable and heavy-duty tire carrier system.
